Pneumatic Ratchet Wrench

+Image

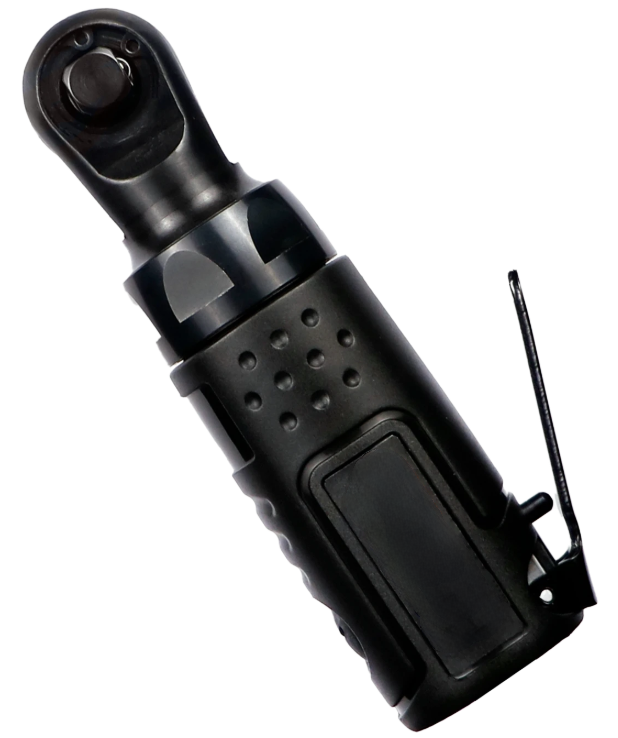

Minimal Ratchet Wrench

Square Drive(inch)

1/4"or 3/8"

Speed(r.p.m)

300

Working Torque

ft-lb 35

N-m 48

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 3

l/min 84

Length

inch 5.28

mm 134

Weight

lbs 0.99

Kgs 0.45



+Image
Minimal 2 in 1 Ratchet Wrench



Square Drive(inch)

3/8" with 1/4" Hex.

Speed(r.p.m)

300

Working Torque

ft-lb 35

N-m 48

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 3

l/min 84

Length

inch 5.28

mm 134

Weight

lbs 0.99

Kgs 0.45



+Image

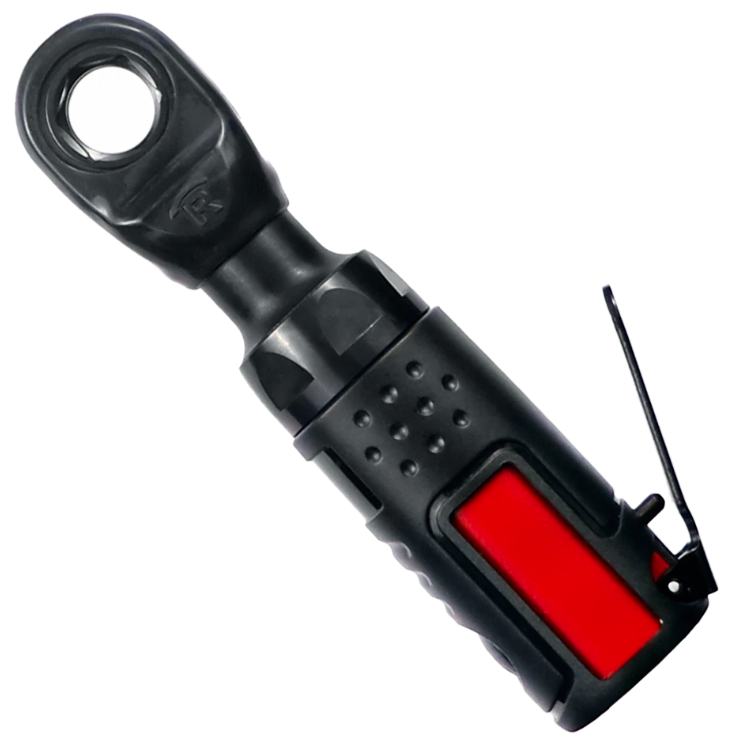

Minimal Multifunction Ratchet Wrench

Square Drive(inch)

Hex .17

Speed(r.p.m)

400

Working Torque

ft-lb 35

N-m 48

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 3

l/min 84

Length

inch 6.62

mm 159

Weight

lbs 1.06

Kgs 0.48



+Image

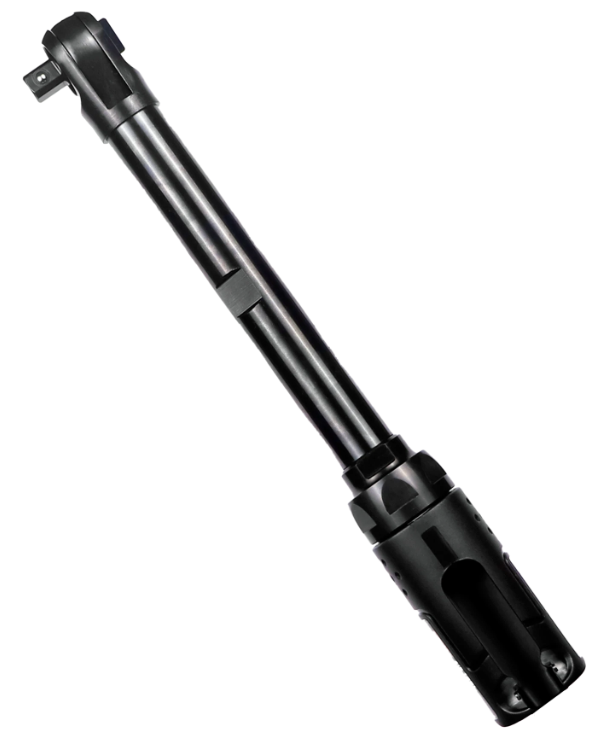

Minimal Ratchet Wrench / Extended 5"

Square Drive(inch)

1/4" or 3/8"

Speed(r.p.m)

250

Working Torque

ft-lb 35

N-m 48

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 3

l/min 84

Length

inch 11.03

mm 280

Weight

lbs 1.76

Kgs 0.8



+Image

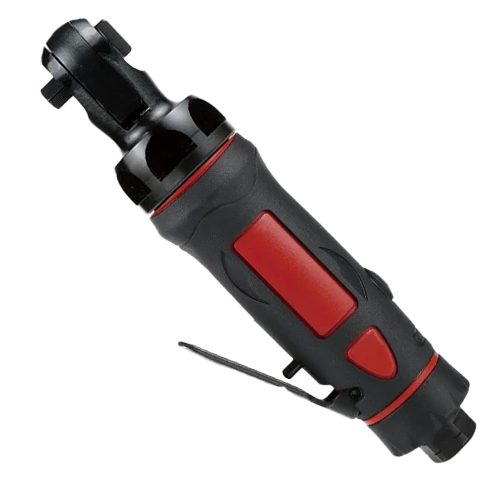

Mini Heavy Duty Ratchet Wrench

Square Drive(inch)

1/4" or 3/8"

Speed(r.p.m)

300

Working Torque

ft-lb 40

N-m 54

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 3

l/min 84

Length

inch 6.81

mm 173

Weight

lbs 0.96

Kgs 0.44



+Image

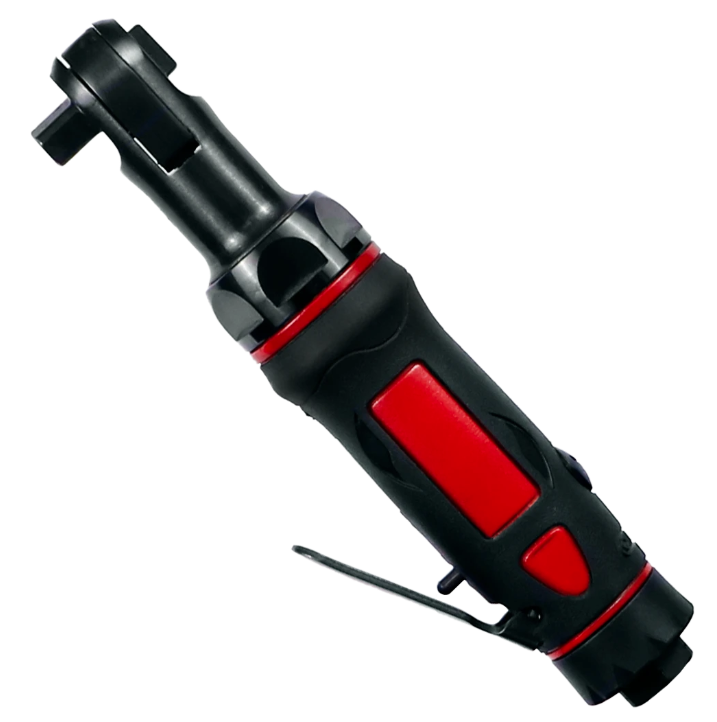

Heavy Duty Ratchet Wrench

Square Drive(inch)

1/4" or 3/8"

Speed(r.p.m)

300

Working Torque

ft-lb 40

N-m 54

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 3

l/min 84

Length

inch 7.88

mm 202

Weight

lbs 1.4

Kgs 0.64



+Image

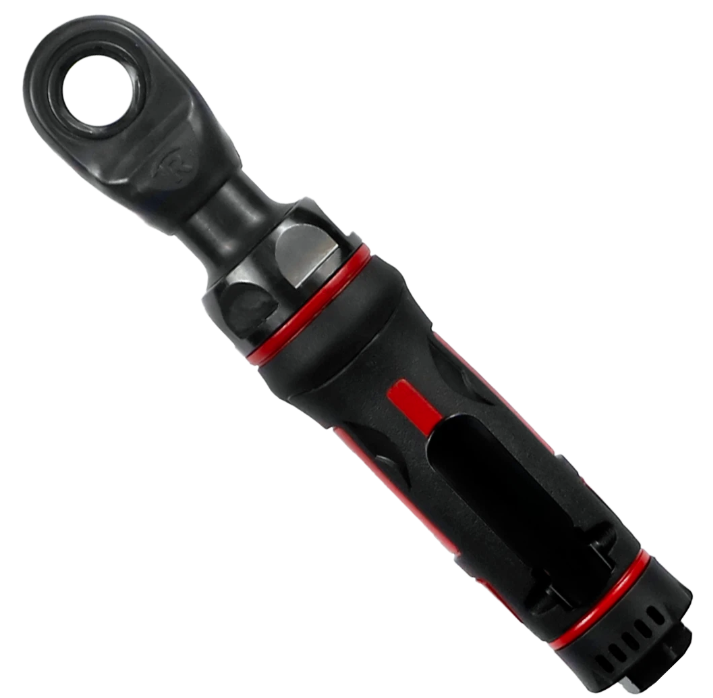

Heavy Duty Multifunction Ratchet Wrench

Square Drive(inch)

Hex .17

Speed(r.p.m)

400

Working Torque

ft-lb 40

N-m 54

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 3

l/min 84

Length

inch 8.85

mm 227

Weight

lbs 1.45

Kgs 0.66



+Image

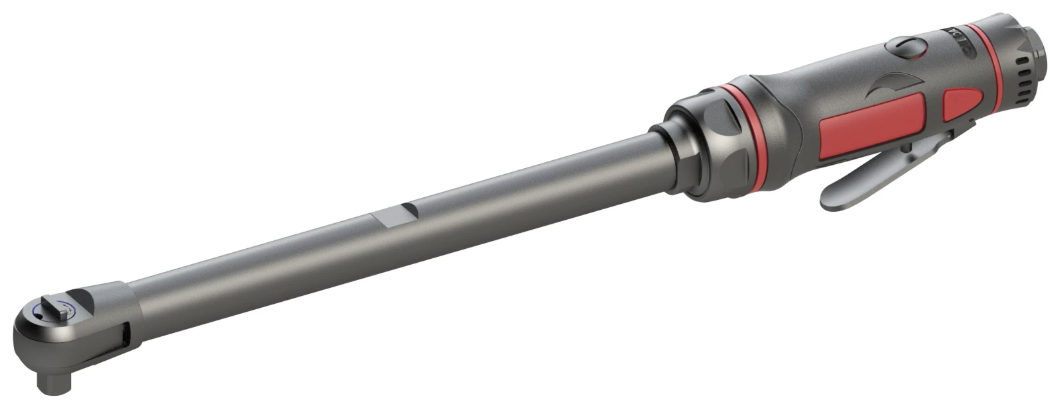

Heavy Duty Ratchet Wrench / Extended 10"

Square Drive(inch)

1/4" or 3/8"

Speed(r.p.m)

300

Working Torque

ft-lb 35

N-m 48

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 3

l/min 84

Length

inch 15.75

mm 400

Weight

lbs 2.86

Kgs 1.3



+Image

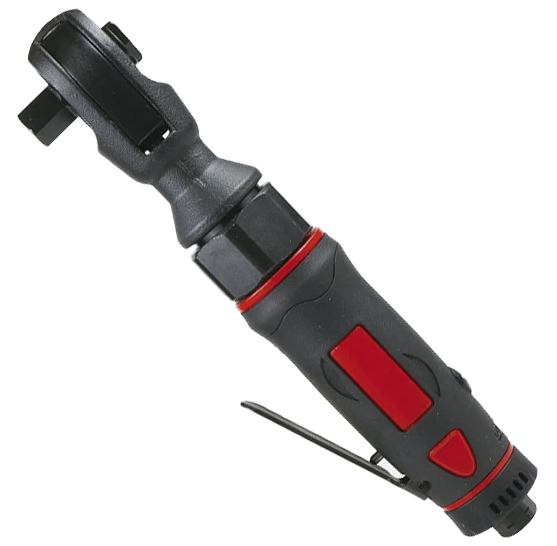

Heavy Duty Ratchet Wrench

Square Drive(inch)

1/2" or 3/8"

Speed(r.p.m)

160

Working Torque

ft-lb 70

N-m 95

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 4

l/min 113

Length

inch 9.9

mm 254

Weight

lbs 2.86

Kgs 1.3



+Image
Heavy Duty Ratchet Wrench

Square Drive(inch)

1/2" or 3/8"

Speed(r.p.m)

160

Working Torque

ft-lb 70

N-m 95

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 4

l/min 113

Length

inch 10.65

mm 273

Weight

lbs 2.6

Kgs 1.2



+Image

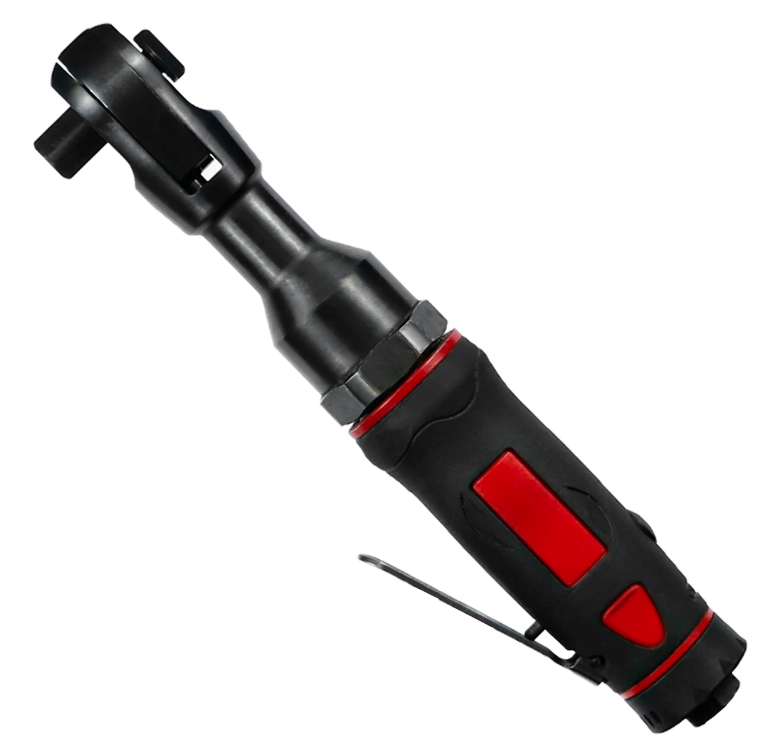

Heavy Duty Impact Ratchet Wrench

Square Drive(inch)

1/2" or 3/8"

Speed(r.p.m)

600

Working Torque

ft-lb 70

N-m 95

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 4

l/min 113

Length

inch 10.55

mm 268

Weight

lbs 2.64

Kgs 1.2



+Image

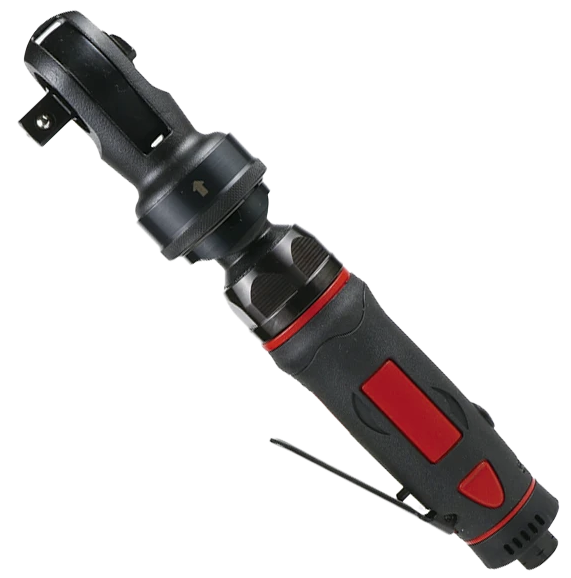

Heavy Duty Flex Head Ratchet Wrench

Square Drive(inch)

1/2" or 3/8"

Speed(r.p.m)

160

Working Torque

ft-lb 70

N-m 95

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 4

l/min 113

Length

inch 10.72

mm 275

Weight

lbs 3.19

Kgs 1.45



+Image

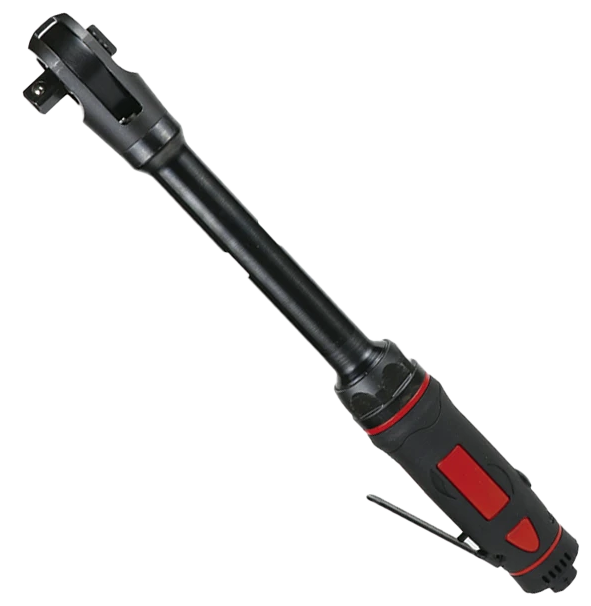

Heavy Duty Ratchet Wrench / Extended 5"

Square Drive(inch)

1/2" or 3/8"

Speed(r.p.m)

160

Working Torque

ft-lb 70

N-m 95

Air Inlet(PT)

1/4"

Air Hose(ID)

3/8"

Air Consumption

cfm 4

l/min 113

Length

inch 15.21

mm 390

Weight

lbs 3.58

Kgs 1.63
