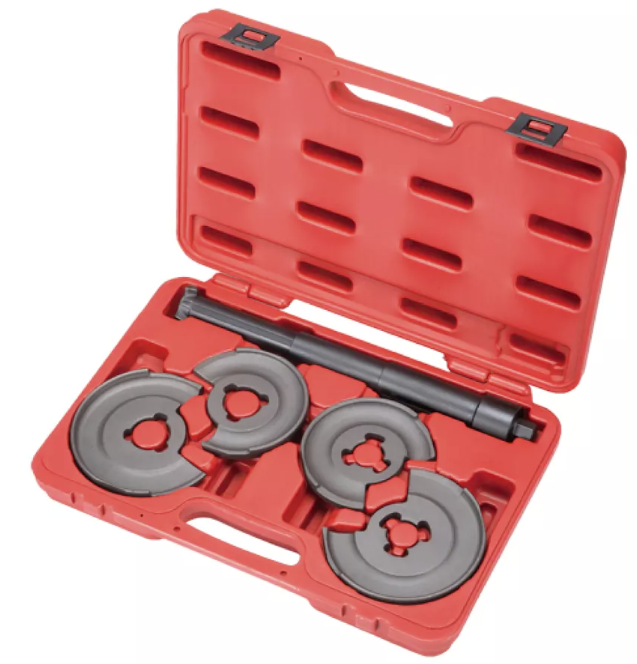

Suitable for working on lower control arm hole diameter smaller than Ø30 mm

For compressing coil springs on double A and multi-link suspensions

Mostly on rear suspensions, sometimes on front suspensions (see Application tab below)

Includes C-shaped devices for tighter connection between the discs and tool strut

Can be operated with an air/impact wrench with the use of the 100 Nm torque bar

Break point: 10,180 kgf (99,764 N)

Maximum load: 4,072 kgf (39,900 N)

Provided with Product Liability Insurance

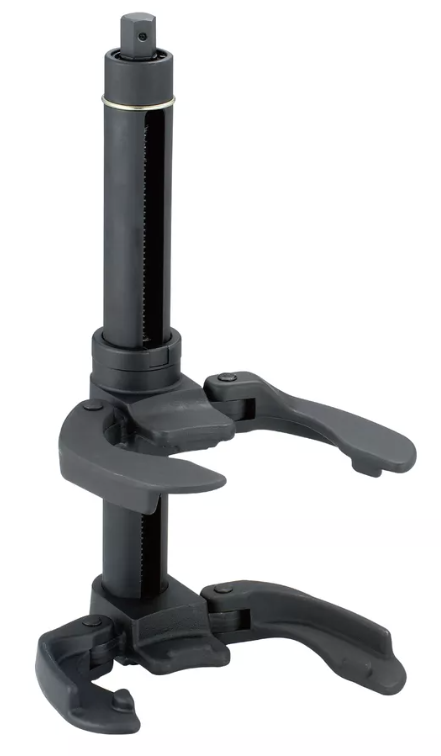

Kit for compressing MacPherson shock absorber coil springs

Jaws width can be adjustable, fitting different sizes of coil springs

Break point 5,800 kgf (ca. 56,800 N)

Max. load 2,318 kgf (ca. 22,700 N)

Safety locks can fix the compressor more securely on the coil spring

Provided with Product Liability Insurance

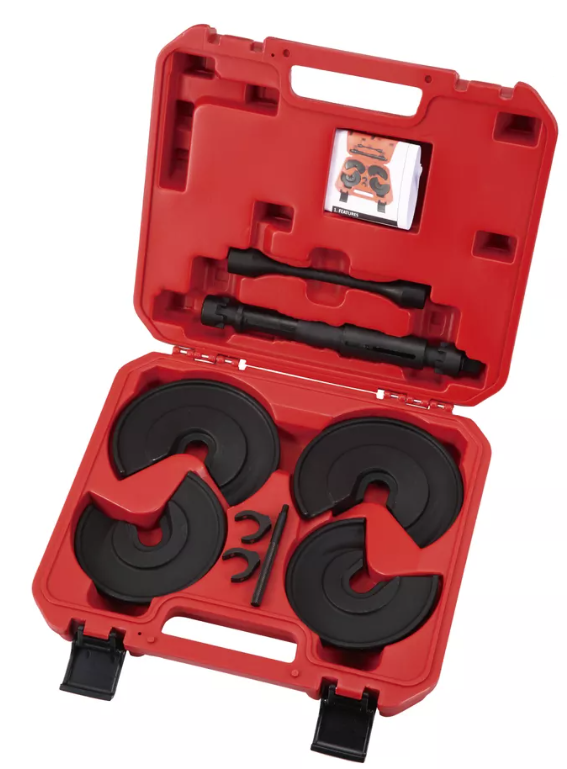

Suitable for coil springs with internal diameter > Ø 75 mm and external diameter < Ø 155 mm

Special pins on tool body to mesh with grooves on discs to create a secure connection (see illustration on the right)

Can be operated with an air/impact wrench

Provided with product liablity insurance

Suitable for

- Audi A4, A6

- BMW 3 Series E46, X3 E83, X6 E71, E72, Z3 E36

- Citroen Berlingo, C8, Dispatch

- Fiat Bravo, Croma, Punto, Scudo, Ulysse

- Ford Galaxy, Maverick, Mondeo

- Hyundai Getz, Santa Fe

- Mercedes-Benz A-Class W169, W176, B-Class W245

- Nissan Cube, Leaf, Micra, Murano, Versa

- Opel Astra G/H/J, Corsa B/C, Insignia, Zafira A/B

- Peugeot 207, 807, 5008

- Renault Clio, Espace, Laguna, Thalia

- Tesla Model 3

- Volvo C70, S80, V60, V70, XC60, XC70

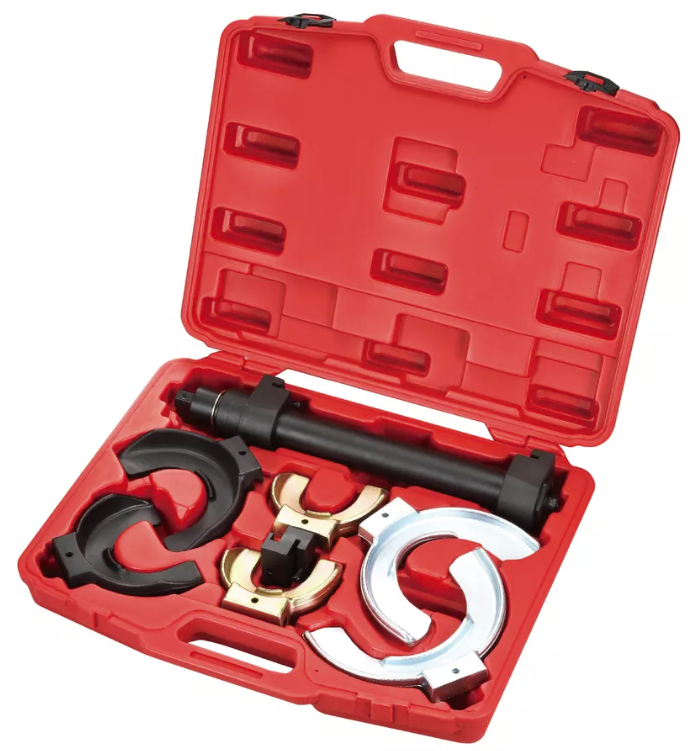

Set for compressing MacPherson shock absorber coil springs

Includes three pairs of C jaws for fitting various sizes

Includes an extension bracket for conical springs

Break point 4,275 kgf (about 41,900 N)

Max. load 1,710 kgf (about 16,760 N)

Provided with Product Liability Insurance

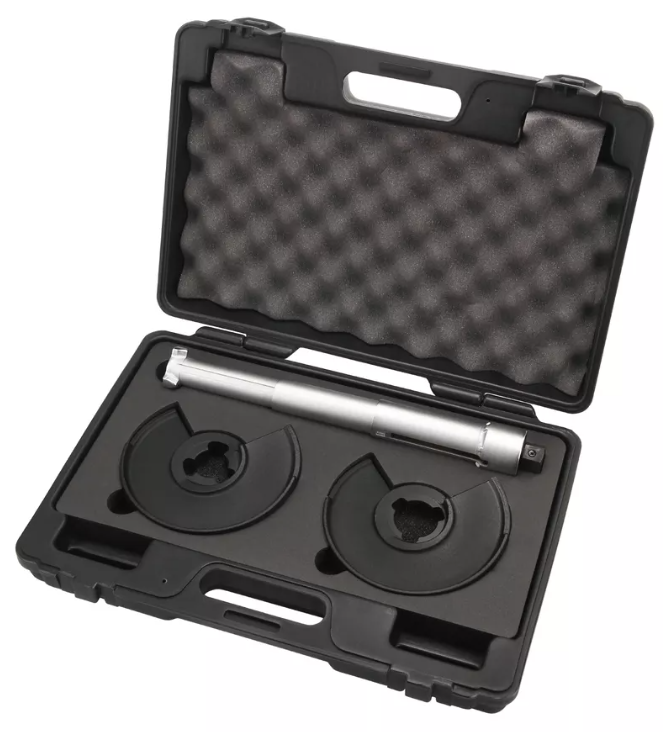

Set for compressing coil springs on multi-link and independent arm suspension systems

Suitable for both front and rear shock absorber springs

Telescopic spindle length: 383 mm

Break point: 14,900 kgf (ca. 146,000 N)

Max. load: 5,959 kgf (ca. 58,400 N)

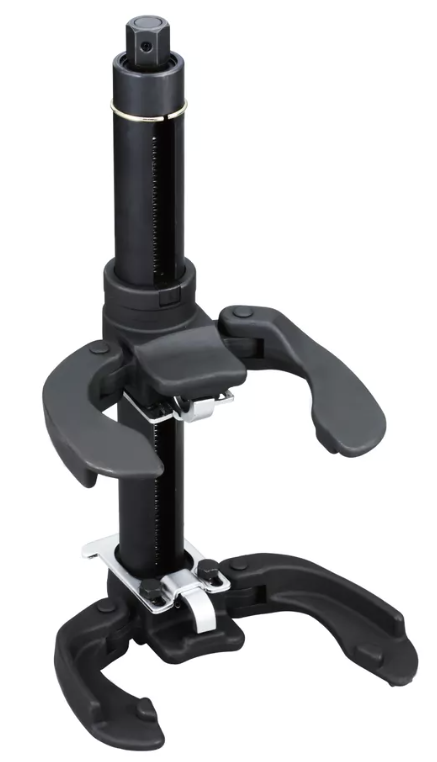

Kit for compressing MacPherson shock absorber coil springs

Jaws width can be adjustable, fitting different sizes of coil springs

Break point 5,800 kgf (ca. 56,800 N)

Max. load 2,318 kgf (ca. 22,700 N)

Use a manual wrench to work with this compressor

Provided with Product Liability Insurance

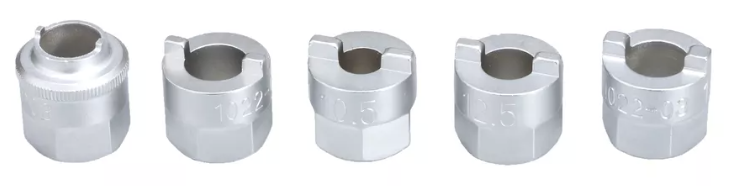

Socket for VW and Audi with shock cap retaining nut recessed inside the strut top

Slotted nuts allow easy removal and installation

Essential for disassembling and assembling strut unit as the nut holds the strut from free-rotating
