Sewage pump

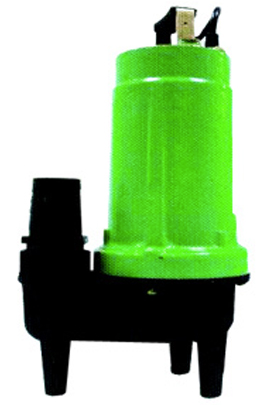

JSW-200IW
Carbon Ceramic Inboard Design with Secondary Rotary V-seal
Oil-filled motor with built-in thermal protecter
Model
JSW-200IW
Typical Application
High capacity sewage
HP
1/2
Volt
115 or 230
Phase
1
Motor
PSC Oil Filled
Capacity-flows
To 109GPM
Capacity-heads
To 26’ THD
Solids Handing
2”
Housing
Cast Iron
Impeller
Cast Iron Vortex
Bearing
Upper & Lower Ball
Seal
Carbon Ceramic Inboard Design with Secondary
Rotary V-SealFloat
Manual ; Wide Angle Float ; Vertical
Cord Length
10’ Standard , 20’ & 30’ Optional
Discharge Size
2”

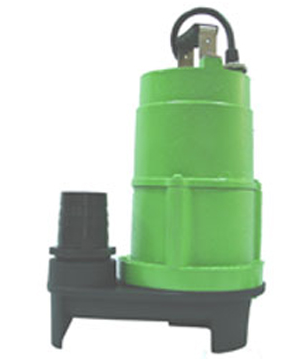

JSW-200BW
Carbon Ceramic Inboard Design with Secondary Rotary V-seal
Oil-filled motor with built-in thermal protecter
Model
JSW-200BW
Typical Application
High capacity sewage
HP
1/2
Volt
115 or 230
Phase
1
Motor
PSC Oil Filled
Capacity-flows
To 109GPM
Capacity-heads
To 26’ THD
Solids Handing
2”
Housing
Cast Iron
Impeller
Cast Iron Vortex
Bearing
Upper & Lower Ball
Seal
Carbon Ceramic Inboard Design with Secondary
Rotary V-SealFloat
Manual ; Wide Angle Float ; Vertical
Cord Length
10’ Standard , 20’ & 30’ Optional
Discharge Size
2”
